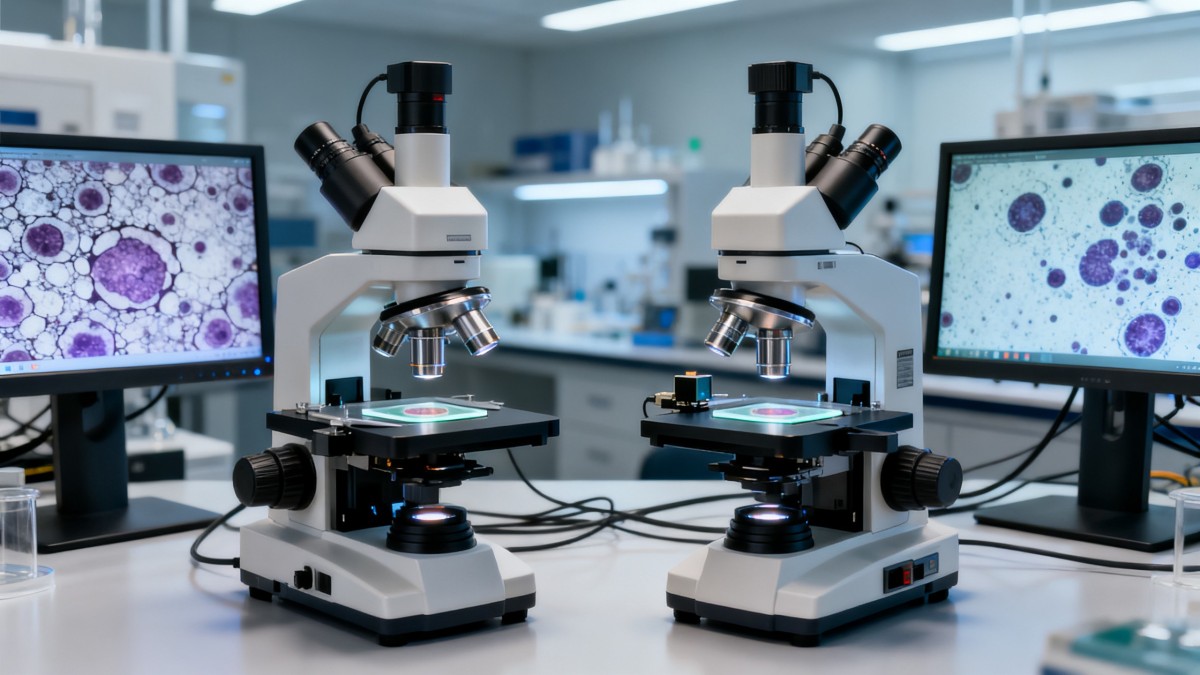

Why Microscopic Imaging Results Vary Between Systems

Microscopic imaging results vary between systems because the final image is shaped by the entire imaging chain, not by magnification alone. Objective quality, illumination stability, detector sensitivity, calibration status, software processing, sample preparation, and operator settings all influence what users actually see and measure. For teams working in life sciences, IVD, immunoassays, cell analysis, and POCT development, this matters not only for scientific accuracy but also for technology evaluation, procurement, compliance, and reproducibility.

If two systems produce different images from the same sample, that does not automatically mean one is defective. More often, the systems are optimized differently, configured differently, or being used under non-equivalent conditions. The practical question is not simply “Which image looks better?” but “Which system produces reliable, repeatable, decision-ready data for the intended application?”

What is the real reason microscopic imaging results differ between systems?

The core reason is that microscopic imaging is a systems-level process. Every stage can introduce variation:

• Light source performance: LED, halogen, mercury, and laser-based illumination differ in spectral output, uniformity, stability, and intensity.
• Optical path quality: Objectives, filters, beam splitters, tube lenses, and alignment all affect contrast, resolution, and aberration control.
• Detector characteristics: CMOS, sCMOS, and CCD sensors vary in quantum efficiency, dynamic range, read noise, pixel size, and low-light performance.
• Mechanical precision: Stage repeatability, autofocus accuracy, vibration control, and thermal stability impact image consistency.
• Software processing: Denoising, sharpening, auto-exposure, stitching, color mapping, and AI-based enhancement can alter image appearance and measurement outputs.
• Sample variables: Staining consistency, slide thickness, mounting medium, cell density, fluorescence intensity, and specimen degradation change what the system captures.
• User-defined settings: Exposure time, gain, binning, laser power, aperture, scan speed, and threshold settings often explain more variation than hardware alone.

In other words, when imaging results vary, the cause is usually a combination of instrument design, setup conditions, and workflow control. This is especially important in regulated or semi-regulated environments where image-based interpretation influences screening, assay validation, or product release decisions.

Why magnification alone is a poor way to compare imaging systems

Many buyers and new users instinctively compare systems by magnification. This is one of the most common sources of misunderstanding.

Magnification does not equal resolution. A higher nominal magnification does not guarantee more useful information. If the optics cannot resolve finer detail, or if the detector cannot capture it clearly, the image may simply appear larger but not more informative.

Contrast often matters more than size. In cell culture observation, tissue morphology review, and immunofluorescence work, the ability to distinguish subtle boundaries or signal differences is often more valuable than a larger image.

Field of view changes the interpretation. One system may deliver excellent close-up detail, while another better supports scanning larger sample areas or higher-throughput workflows.

Digital zoom can be misleading. Some displays enlarge pixels rather than reveal additional structure, which can create false confidence during system evaluation.

For technical assessors and procurement teams, a better comparison framework includes resolution, signal-to-noise ratio, illumination homogeneity, repeatability, throughput, software traceability, and suitability for the intended assay or specimen type.

Which hardware factors most strongly affect image quality and consistency?

When comparing microscopic imaging systems, several hardware factors usually have the greatest impact on real-world performance.

1. Objective lens quality

The objective is often the most influential component in the imaging chain. Numerical aperture, working distance, correction for chromatic and spherical aberrations, and manufacturing quality all directly affect clarity and brightness. In fluorescence applications, objective efficiency can strongly influence weak-signal detection.

2. Illumination source and stability

Laser and LED systems can differ significantly in wavelength specificity, intensity control, and temporal stability. In quantitative imaging, unstable illumination can distort comparisons across runs, sites, or time points. For IVD and assay development, this can become a serious reproducibility issue.

3. Sensor performance

Detector selection affects how the instrument handles low-light samples, fast acquisition, and quantitative measurements. A high-quality sensor may reveal differences in antibody staining or cell morphology that a lower-performance detector misses or compresses.

4. Filter sets and spectral separation

For fluorescence imaging, poor filter matching can increase bleed-through, reduce specificity, and distort multiplexed readouts. This is highly relevant in immunoassays, molecular diagnostics, and marker-based cell analysis.

5. Mechanical and thermal stability

Stage drift, focus drift, and vibration can undermine long exposure imaging, time-lapse work, and tiled image acquisition. In multi-user laboratories, systems with poor mechanical repeatability often produce inconsistent outcomes even when specifications appear acceptable on paper.

How software and default settings create hidden differences

Two systems may use similar optics yet generate visibly different images because of software behavior. This is a critical issue for users, quality teams, and evaluators.

Common software-driven variables include:

• Automatic exposure and gain adjustment
• Background subtraction
• Noise reduction algorithms
• Contrast stretching and histogram normalization
• Edge enhancement or sharpening
• Color rendering for fluorescence channels
• Segmentation and quantification logic

These functions can be useful, but they can also make cross-system comparisons unfair if they are not standardized. A system that “looks better” in a demo may simply be applying more aggressive image enhancement.

For decision-makers, this means vendor demonstrations should include both processed images and raw data review. For operators, this means SOPs should define acquisition settings and post-processing rules clearly. For quality and compliance teams, this means auditability and software traceability should be part of the selection criteria, not an afterthought.

How sample preparation and workflow design influence cross-system variation

Not all imaging differences originate from the instrument. In practice, sample preparation is one of the largest contributors to variability.

Examples include:

• Uneven staining intensity across slides or wells
• Differences in fixation or permeabilization protocols
• Variability in coverslip thickness or mounting media
• Cell confluence differences in culture-based assays
• Photobleaching during handling
• Storage-related specimen degradation

In distributed organizations or multi-site testing programs, inconsistent sample handling can make one imaging platform appear better or worse than it really is. This is why robust comparative evaluation requires controlled specimens, standardized operators, matched acquisition protocols, and repeat testing across time.

For project managers and enterprise decision-makers, the takeaway is clear: instrument selection without workflow standardization often leads to disappointing reproducibility after deployment.

How to compare microscopic imaging systems in a way that supports purchasing and validation

If your goal is to assess systems for research, diagnostics support, or industrial laboratory use, a structured comparison method is more useful than visually comparing a few attractive images.

Use application-specific test samples

Evaluate systems using the same specimen types you actually work with, such as fluorescently labeled cells, tissue sections, IVD slides, beads, or assay plates. Generic demos rarely reflect real operating conditions.

Compare raw and processed outputs

Ask vendors to provide unprocessed image files in addition to presentation-ready screenshots. This helps reveal the true contribution of optics and sensors.

Standardize acquisition conditions

Keep exposure, gain, binning, objective, filter settings, and environmental conditions as consistent as possible. If systems require different settings, document why.

Measure repeatability, not just peak performance

A system that delivers one excellent image but inconsistent results across users or days may be a poor operational choice.

Assess workflow fit

Consider throughput, automation compatibility, data management, user training burden, maintenance needs, and service support. The best imaging system is not always the most advanced one; it is the one that supports your actual process reliably.

Review compliance and traceability features

For regulated environments, check user access control, audit trails, data integrity support, calibration documentation, and software validation readiness.

What different stakeholders should focus on when results vary

Different readers will interpret imaging variation through different priorities. A useful evaluation should address each one directly.

For operators and lab users

Focus on SOP consistency, calibration routines, focus control, illumination checks, and whether software defaults are changing your images without your awareness.

For technical evaluators

Focus on optical performance, detector specifications, quantitative reproducibility, spectral performance, interoperability, and benchmark testing with representative samples.

For procurement and commercial teams

Focus on total cost of ownership, service reliability, application fit, upgrade path, training requirements, and whether premium features create measurable value.

For quality and safety managers

Focus on validation support, traceability, repeatability, maintenance records, and risk of interpretation errors caused by inconsistent image generation.

For enterprise decision-makers

Focus on business outcomes: reduced retesting, improved confidence in analysis, smoother cross-site standardization, lower training burden, and better support for compliance and scale.

When variation is acceptable and when it becomes a problem

Some variation between systems is normal. Different imaging architectures may legitimately emphasize speed, sensitivity, field of view, or multiplexing performance. Variation becomes a problem when it causes one or more of the following:

• Different scientific or clinical interpretations from the same sample
• Unstable quantitative outputs across runs or sites
• Failure to reproduce internal validation data
• Operator-dependent image quality
• Difficulty transferring methods between systems
• Unexpected costs due to retraining, recalibration, or workflow redesign

If variation affects decisions, comparability, or compliance, it should be treated as a system-level risk rather than a minor visual difference.

Conclusion: the best imaging system is the one that delivers dependable decisions

Microscopic imaging results vary between systems because microscopy is influenced by optics, illumination, detectors, software, mechanics, sample preparation, and user control. For laboratories, developers, technical evaluators, and buyers, the key lesson is that image comparison must go beyond magnification and visual appeal.

A meaningful assessment asks whether the system produces reproducible, application-relevant, and operationally sustainable results. In life sciences, IVD, immunoassays, and precision imaging workflows, that is what ultimately protects data quality, purchasing confidence, and downstream decision-making.

When imaging variation is understood systematically, it becomes easier to choose the right platform, standardize workflows, and generate results that teams can trust.
